wheel_koumoku02

RC-G5 / RC-G4 / RC-T5 / RC-T4
Option Parts

ES-TARMAC / ES-GRAVEL
Option Parts

CENTER CAPS

c4

Name

Center Cap(High Type)

Part No.

C4

Fitness(*)

RC-T4(Japanese Cars, GOLF, MINI, RENAULT Size) RC-G5, RC-G4

Internal Dimension

Dia.55mm x Clearance from wheel face 20mm

Price

JPY 3,000

c7b

Name

Center Cap(Low Type)Silver Ring/Silver

Part No.

C7B

Fitness(*)

RC-T4(Japanese Cars, GOLF, MINI, RENAULT Size) RC-G4

Internal Dimension

Dia.55mm x Clearance from wheel face
6mm

Price

JPY 3,500

c7c

Name

Center Cap(Low Type)Black Ring/Black

Part No.

C7C

Fitness(*)

RC-T4(Japanese Cars, GOLF, MINI, RENAULT Size) RC-G4

Internal Dimension

Dia.55mm x Clearance from wheel face
6mm

Price

JPY 3,500

c5

Name

Center Cap Ring for ALFA ROMEO

Part No.

C5

Fitness

RC-T4 for ALFA ROMEO size(5-98) ALFA ROMEO Genuine Center Cap can be fitted in middle.

Price

JPY 3,000

c6

Name

Center Cap for PORSCHE(Flat Type)

Part No.

C6

Fitness

RC-T4 for PORSCHE size(5-130)

Price

JPY 3,000

*Fitness will be varied depending on the protrusion of hub.

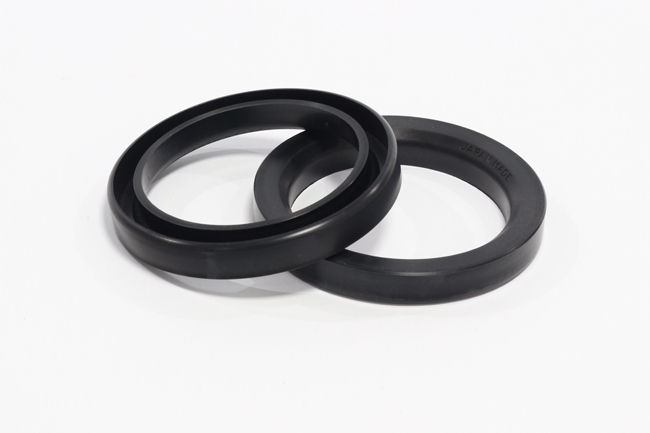

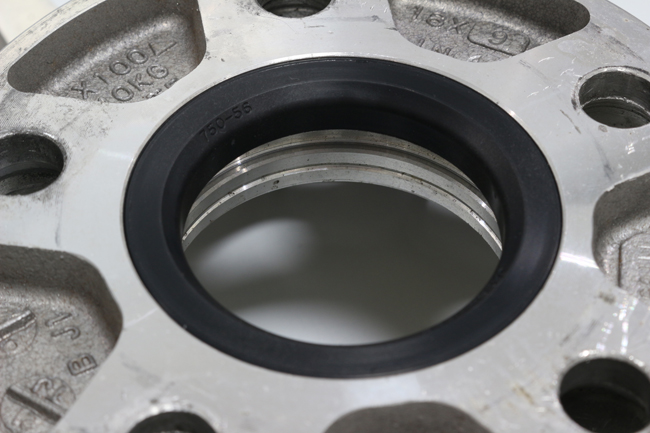

ALUMINIUM HUB RING

hubring_alumi

SIZE

Price

Internal Diameter

External Diameter

Part No.

φ54mm

φ75mm

HUB54N

JPY1,300/
1 piece

φ56mm

HUB56N

φ59mm

HUB59N

φ60mm

HUB60N

φ64mm

HUB64N

φ66mm

HUB66N

φ67mm

HUB67N

φ70mm

HUB70N

HUB RING STOPPER

hubring_spring_disc

Description

Spring ring for fixing hub ring into wheel

Part No.

HUBR

Size

φ75mm(RC-T4/T5/G4/G5)

Price

JPY 800/4 pieces

REPAIR PARTS

BR14

Name

RC-T4 bolt for GOLF5(5-112)

Part No.

BR14

Size

M14xR14x1.5 / 23mm long

Price

JPY 800/piece

B3

Name

M12 x P1.5 Wheel Bolt

Part No.

B3

Specification

M12xP1.5 / 28mm long 17HEX
60°Taper, suitable for BMW MINI, Renault and other short bolt fitted cars.
Chrome-Plated Steel

Price

JPY 600/piece

B2

Name

M14 x P1.5 Wheel Bolt

Part No.

B2

Specification

M14xP1.5 / 28mm long 17HEX
60°Taper, suitable for BMW MINI and other short bolt fitted cars.
Chrome-Plated Steel

Price

JPY 600/piece

B1

Name

M12 x P1.25 Wheel Bolt

Part No.

B1

Specification

M12xP1.25 / 30mm long 19HEX
60°Taper, suitable for Alpha Romeo
Chrome-Plated Steel

Price

JPY 600/piece

v5

Name

Air Valve (Rubber type)

Description

33mm long (without cap)
Included in RC-G4/G5
Applicable for All ENKEI Sport models

Part No.

V5

Price

JPY 200/piece

v4

Name

Air Valve (Steel type)

Description

27mm long (without cap)
Included in ES-TARMAC / ES-GRAVEL / RC-T4 / RC-T5
Applicable for All ENKEI Sport models

Part No.

V4

Material

Chrome Plated Steel

Price

JPY 800/piece

v2

Name

RC-S 13″, 15″, 16″Tubeless valve (Steel type)

Part No.

V2

Material

Chrome Plated Steel

Price

JPY 800/piece

V1

Name

RC-T, RC-T2, RC-G2, M18J Tubeless valve (Steel type)

Part No.

V1

Material

Chrome Plated Steel

Price

JPY 800/piece

s2

Name

“ENKEI SPORT” Logo sticker for RC-T4

Part No.

S2

Price

JPY 1,000/piece
(2pieces/wheel recommended)

S3

Name

“ENKEI SPORT” Logo sticker for RC-G5/T5 White Wheel

Part No.

S3

Price

JPY 2,000/piece/wheel

S4

Name

“ENKEI SPORT” Logo sticker for RC-T5 Dark Silver Wheel Dark

Part No.

S4

Price

JPY 2,000/piece/wheel

PLASTIC HUB RING

hubring_plastic_l

Description:
● ES-TARMAC/ES-GRAVEL Plastic Hub Ring
● Max.Temp.:260℃

SIZE

PRICE

Internal Diameter

External Diameter

Part No.

φ54mm

φ73mm

HUB54

JPY1800/set(4piece/set)

φ56mm

HUB56

φ60mm

HUB60

φ64mm

HUB64

φ66mm

HUB66

φ67mm

HUB67

REPAIR PARTS

v5

Name

Air Valve (Rubber type)

Description

33mm long (without cap)
Included in RC-G4/G5
Applicable for All ENKEI Sport models

Part No.

V5

Price

JPY 200/piece

v4

Name

Air Valve (Steel type)

Description

27mm long (without cap)
Included in ES-TARMAC / ES-GRAVEL / RC-T4 / RC-T5
Applicable for All ENKEI Sport models

Part No.

V4

Material

Chrome Plated Steel

Price

JPY 800/piece

s1

Name

ES-TARMAC Sticker

Part No.

S1

Price

JPY 400/piece
